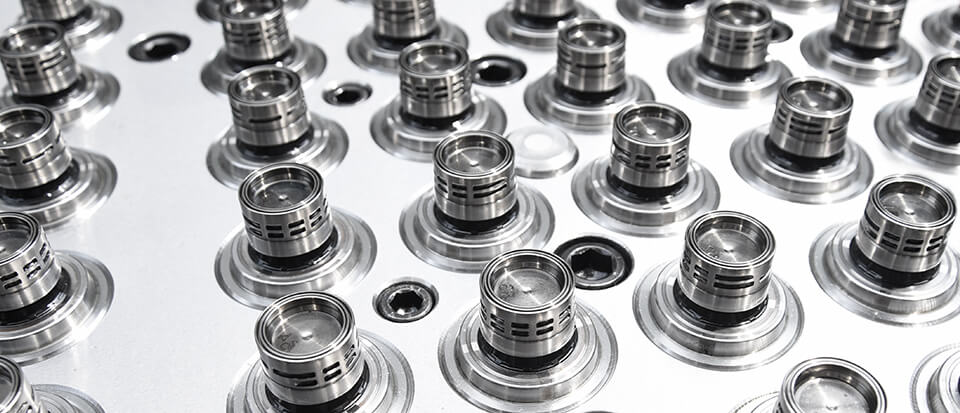

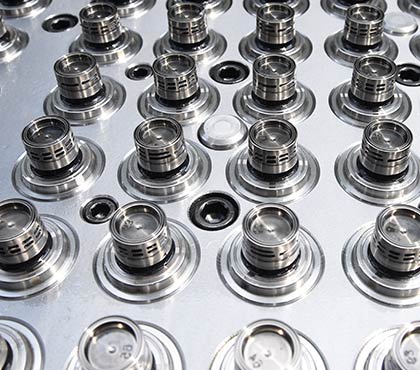

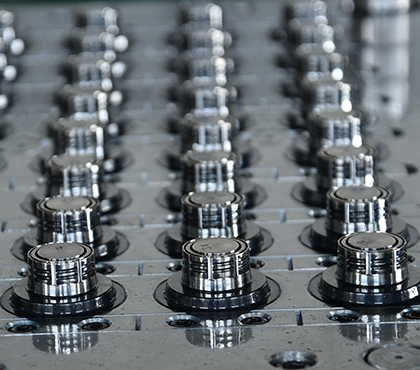

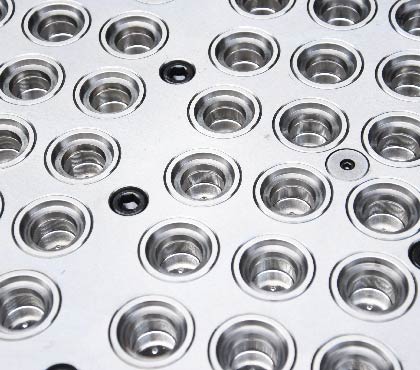

Cap Mould

Sino Mould Co., Ltd is one of world famous bottle cap mould manufacturers, has designed and manufactured various bottle cap moulds up to cavities Nr. 144. Annually, we delivered more than 100 sets plastic cap moulds to all over the world.

Highlights for Cap Mould

Mould cavity and core adopt Assarb S136 with fine polishing, high hardness and anti-corrosion to get mold's high precision and good quality.

Quick and balanced access to all gates, tips and heaters.

Moving part with high precise machining to make sure is interchangeable, easy to change or modify.

High performance hot runner system ensures uniform melt flow and pressure in all cavities.

All of parts are finished by high precision lathing machine, EDM, W-EDM. And in order to realize its precision requirement, all our EDM and W-EDM machines are imported from Japan Sodick, high precision tooling quality can be made.

5 millions life cycle guaranteed without need of components refurbishing with long life solution.

- Cooling System
Optimized cooling layout to support fast cycle times and save energy costs.
- Quality Control by Measuring
Mold components and samples will be inspected by 3D measuring machine, and report will be sent to customer.
- Quality Control by Simulated Production
Every cap mould is tested before shipping on our own brand machines-DAKUMAR to double make sure the mould can run smoothly and steadily.
- Spare Parts
For each mould, we offer 20% necessary spare parts, like ejector pins, ejector ring, sealing ring etc., customer can update wearing parts in time.

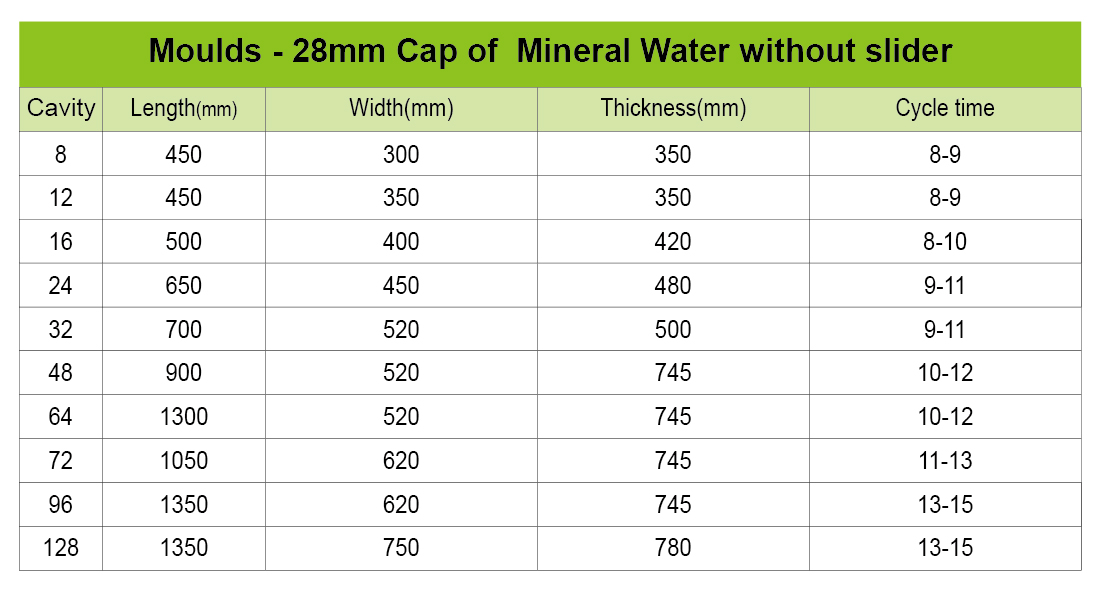

  • Capacity 1

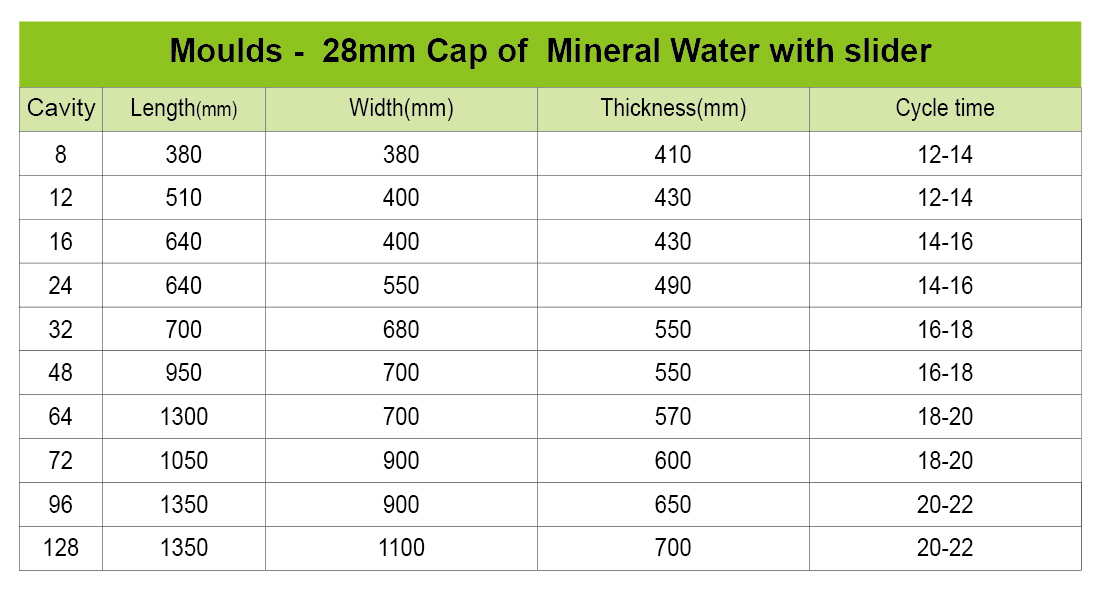

  • Capacity 2

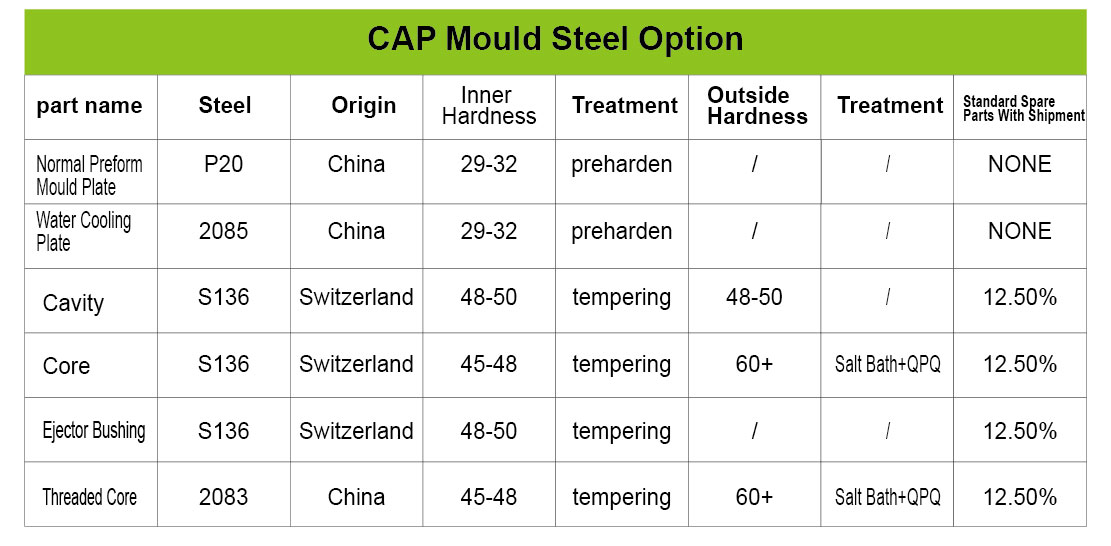

  • Steel Option

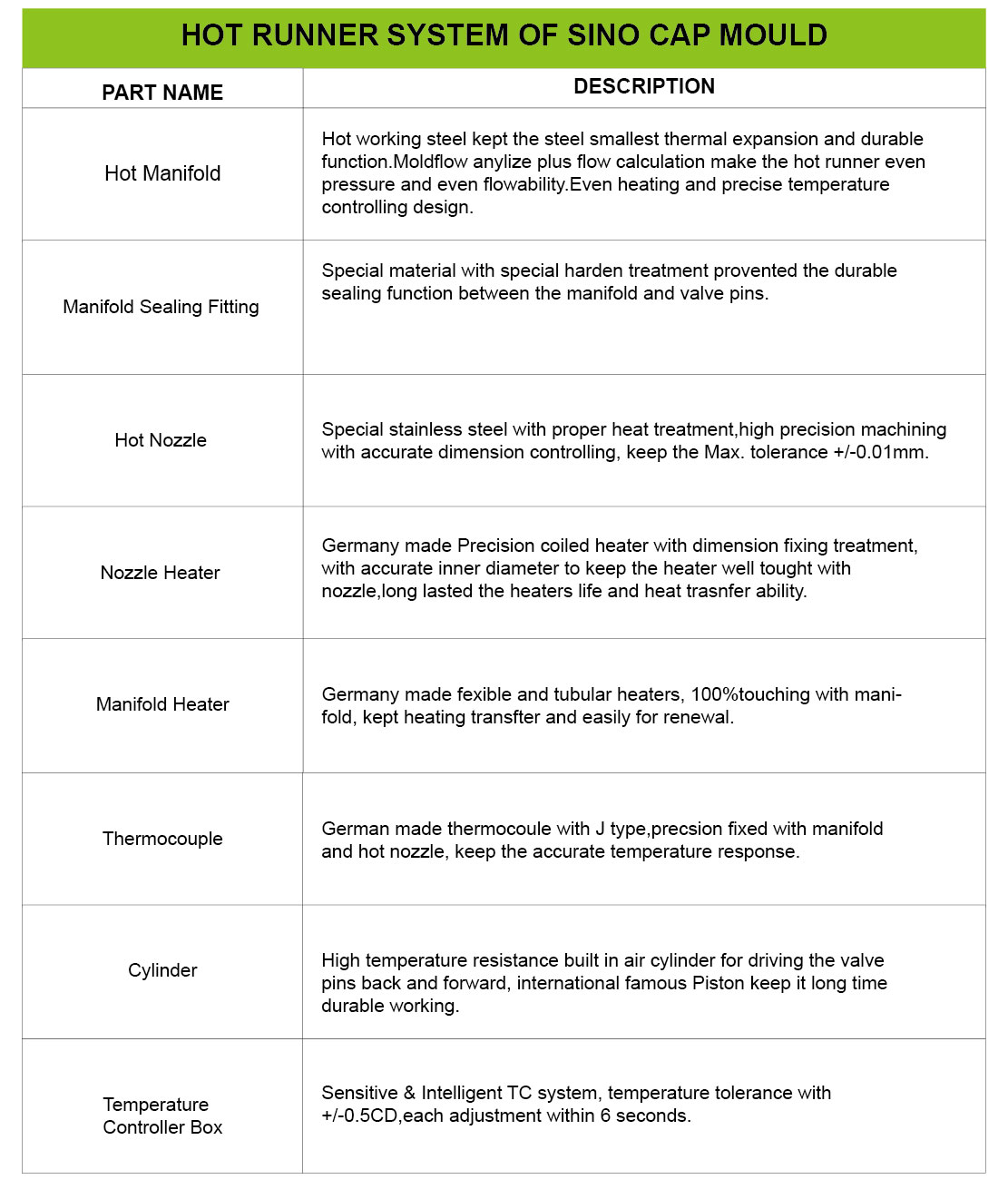

  • Hot Runner
