Plastic Injection Molding Machine
Striving for excellence
providing complete injection molding strategy to meet customers' requirements


Offering a complere configuration system,users can choose a suitable plastic injection molding machine in terms of different requirements
Date:2017-02-15 17:00:21

DKM is a pioneer in the department and innovation of high speed injection molding machines in China.Dakumar high speed injection molding machines are very famous in injection molding machine industry.


The traditional high speed injection machine is focus on the injection speed, which use of accumulate as an injection power source to provide energy for injection., sino holding group R&D5H high speed injection machine on the basis of high-speed injection with two sets of servo hydraulic system, while theoil were action to achieve two-axis or  even  three-axis.the machine cycle speed, high production efficiency,with a very high price,  especially suitable  for  the production of thinwall food container and high precision products.


About 5H, which include high speed, high efficiency, high safety, high precision, high energy saving.

High speed (high speed response accumulator):Machine adopts accumulator to realize high speed injection ,the max injection speed can reach 300-450 mm/sec.

High efficiency(clamping unit): speed of the Mold clamping is 10%-20% faster. standard machine can realize mold opening and ejector at the same time, it saves cycle time.

High safety (hydraulic unit): security module independent control,it ensures safe machine closing, injection, charging, nozzle forward to machine to avoid any accident. Fully closed machine frame.

High precision (electronically controlled unit):Configure European advanced controller, to precisely control the temperature and location.

High energy saving (injection unit):.with high-response servo system, it can save power  by 30%-70%, Reducing the cost for customers to save resources.

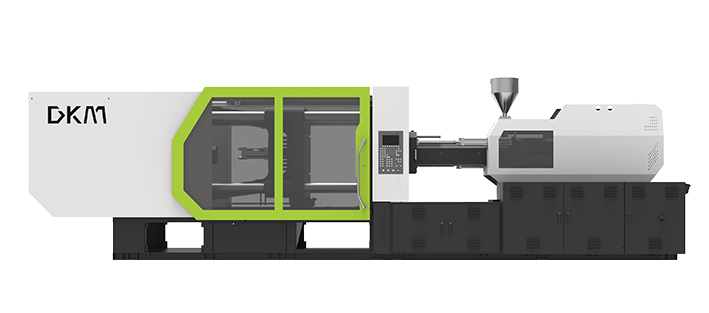

high speed injection molding machine.jpg


Some important parts of our machine are introduced from abroad, for example: the controller is KEBA (made in Austria); the electronic ruler is GEFRAN (made in Italy); the electromagnetic valve is  Yuken (made in Japan); the stroke switch is OMRON (made in Japan)etc.


Need further information about high speed injection molding machine? Welcome to contact me.
